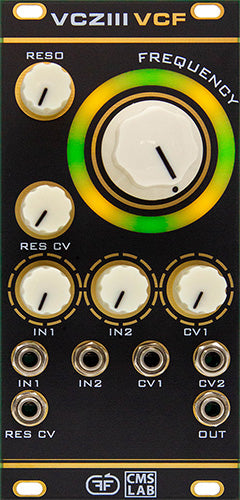

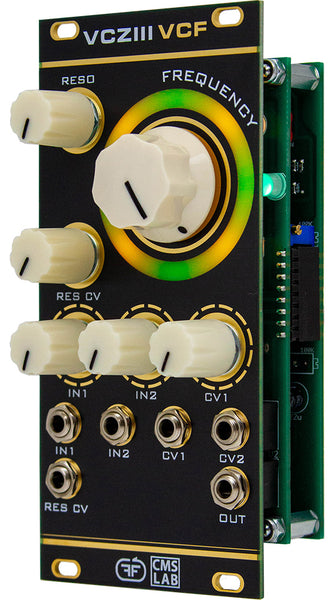

VCZIII VCF
The VCF from the famous British pin matrix synth released in 1969.
The VCZIII series VCF is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCF from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.
Some highlights of this module are:
- AS394 ultra well-matched monolithic NPN transistor pair
- selected and matched BC550 and BC560 transistor pairs
- WIMA capacitors
- selected 2N3819 FET transistor
- two mixed signal inputs
- the CVs are 0-5Vpp, 10Vpp CVs can be attenuated with the CV1 pot and RESO CV pot
Tech specs:
- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA
