VCF2600

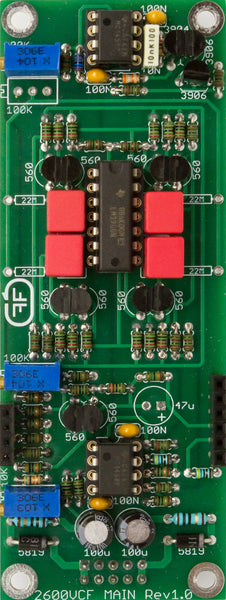

This filter is based on the classic 2600 from the seventies and uses the LM3900 Norton opamp chip.

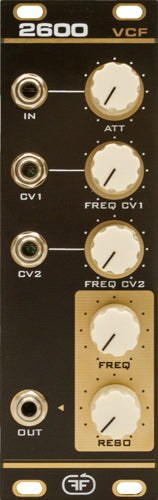

It has an audio inputs, two CV ins and an audio out.
You can control audio input level, CV levels, frequency cutoff and resonance.
It has a beautiful sound and it can go from relatively clean to dirty and screamy depending on audio signal level and resonance.

Tech specs:

- 8HP width

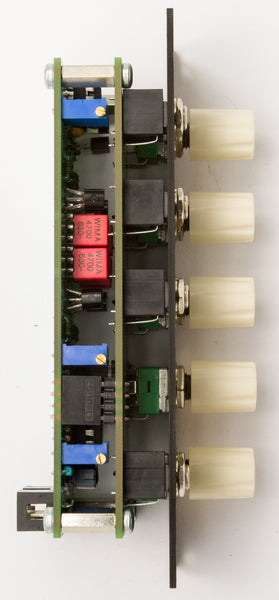

- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 7mA , -12V 13mA
