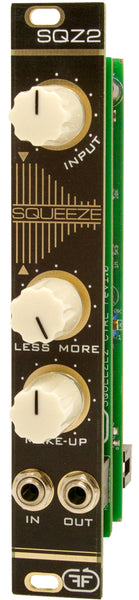

4HP Compressor designed for continuous adjustment of gain, threshold and compression ratio with a single potentiometer.
There is also a knob for input level and a knob for make-up gain.

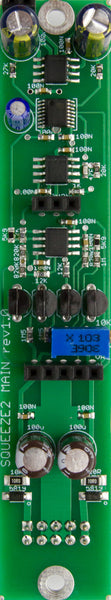

The module is based on high-performance THAT4305 Blackmer® VCA chip.
-35mm depth behind the panel, including the power connector
-1 audio input : IN
-1 audio level pot : INPUT

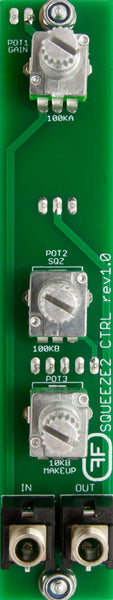

-2 control pots : LESS/MORE (compression), MAKE-UP Gain
-1 output : OUT
-standard 10 pin euro power +12V / -12V
-power consumption +12V 25mA -12V 25mA
For more details and forum visit :Squeeze Module - Muffwiggler
